Creating TURN Credentials

There are two ways to create TURN Credentials:

1. You can create them using the dashboard
2. You can create the TURN Credential using the REST API

With the REST API you can also create TURN Credentials that expire automatically after a fixed duration.

Creating Credentials from the Dashboard

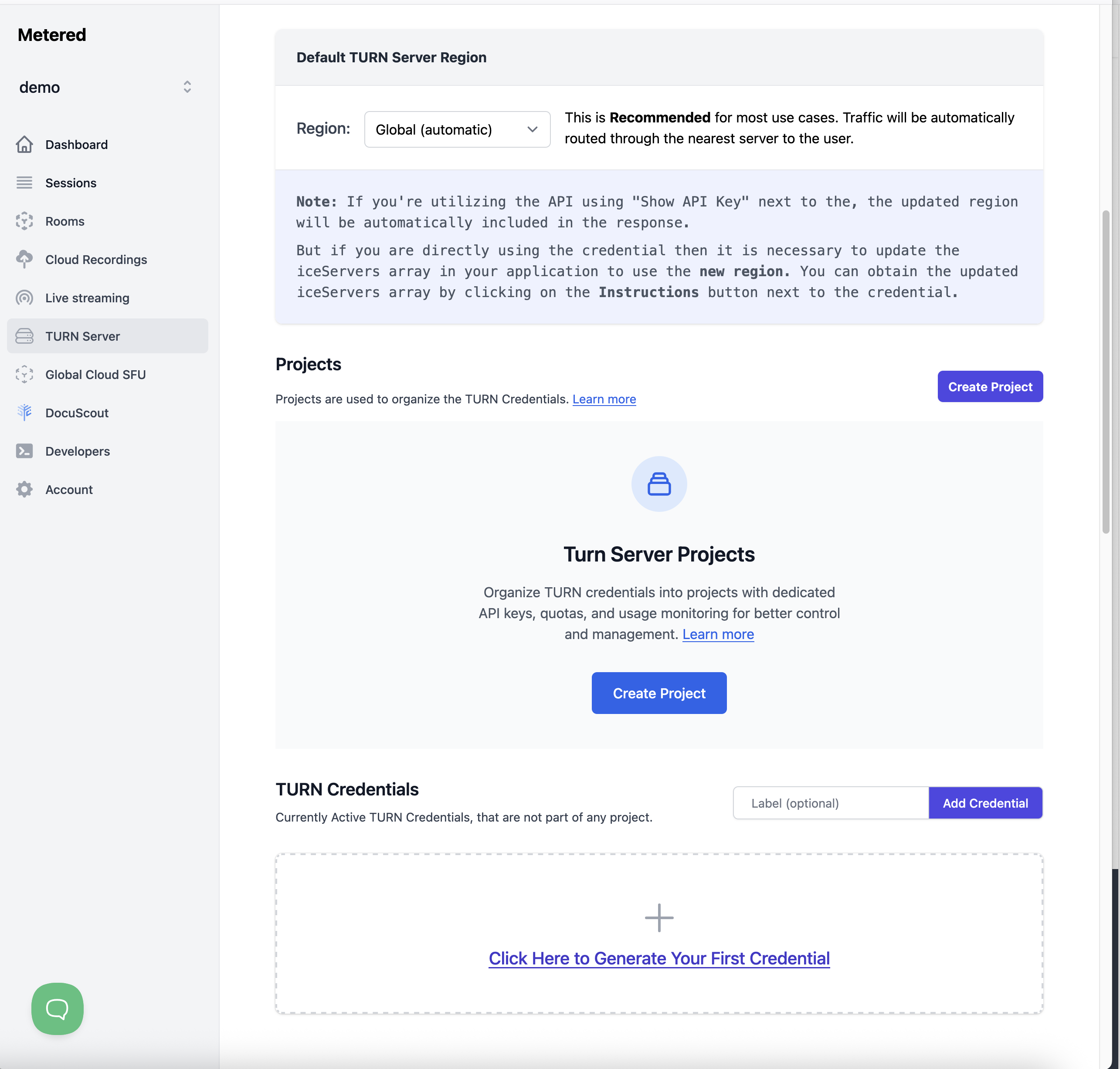

To create the TURN Credential from the dashboard, log into the Metered Dashboard and then go to the TURN Server page.

Here on the page click on the "Click Here to Generate Your First Credential" button.

Alternatively you can also click on the "Add Credential" button.

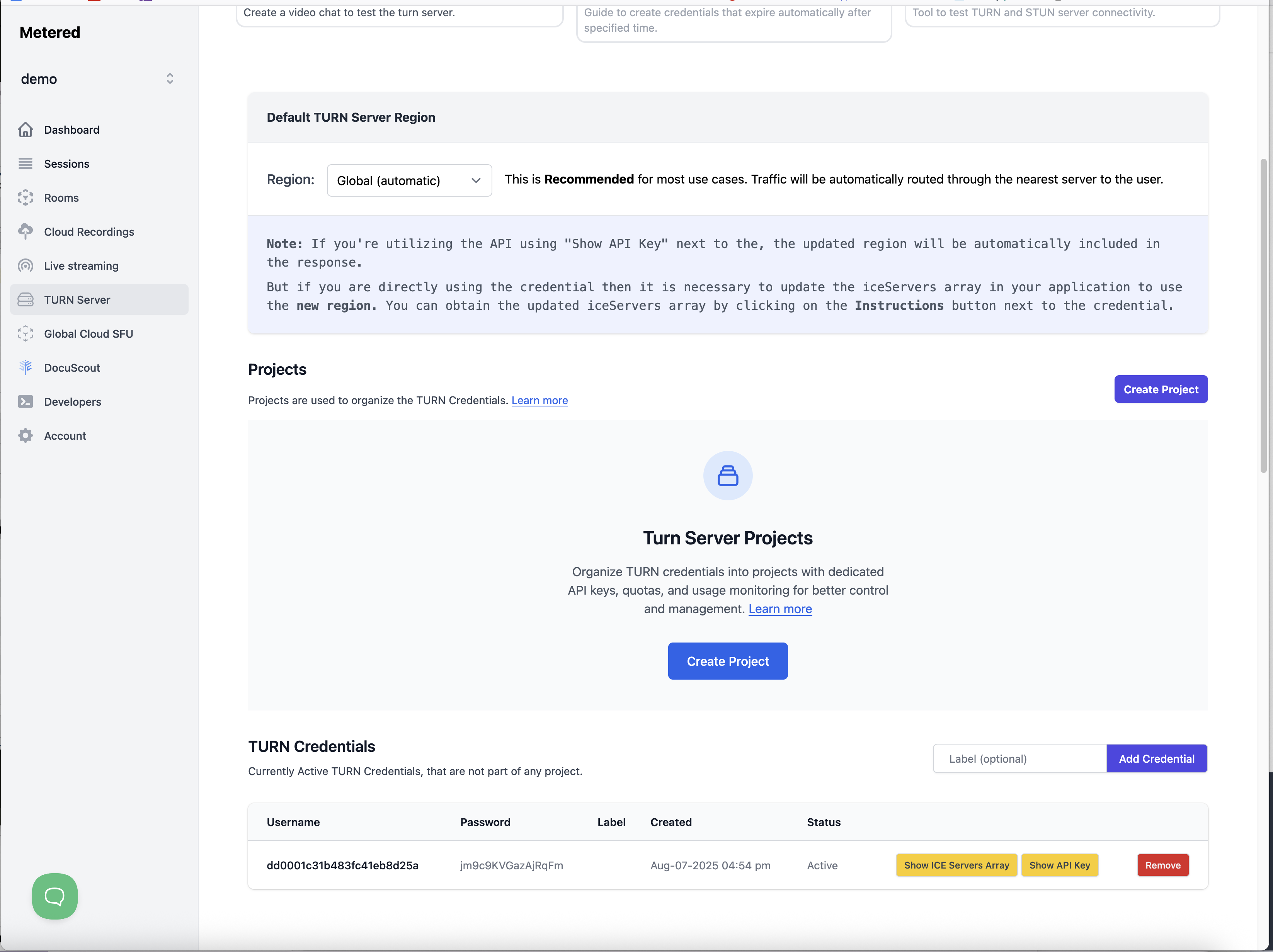

After the credential has been created you can see it on the dashboard.

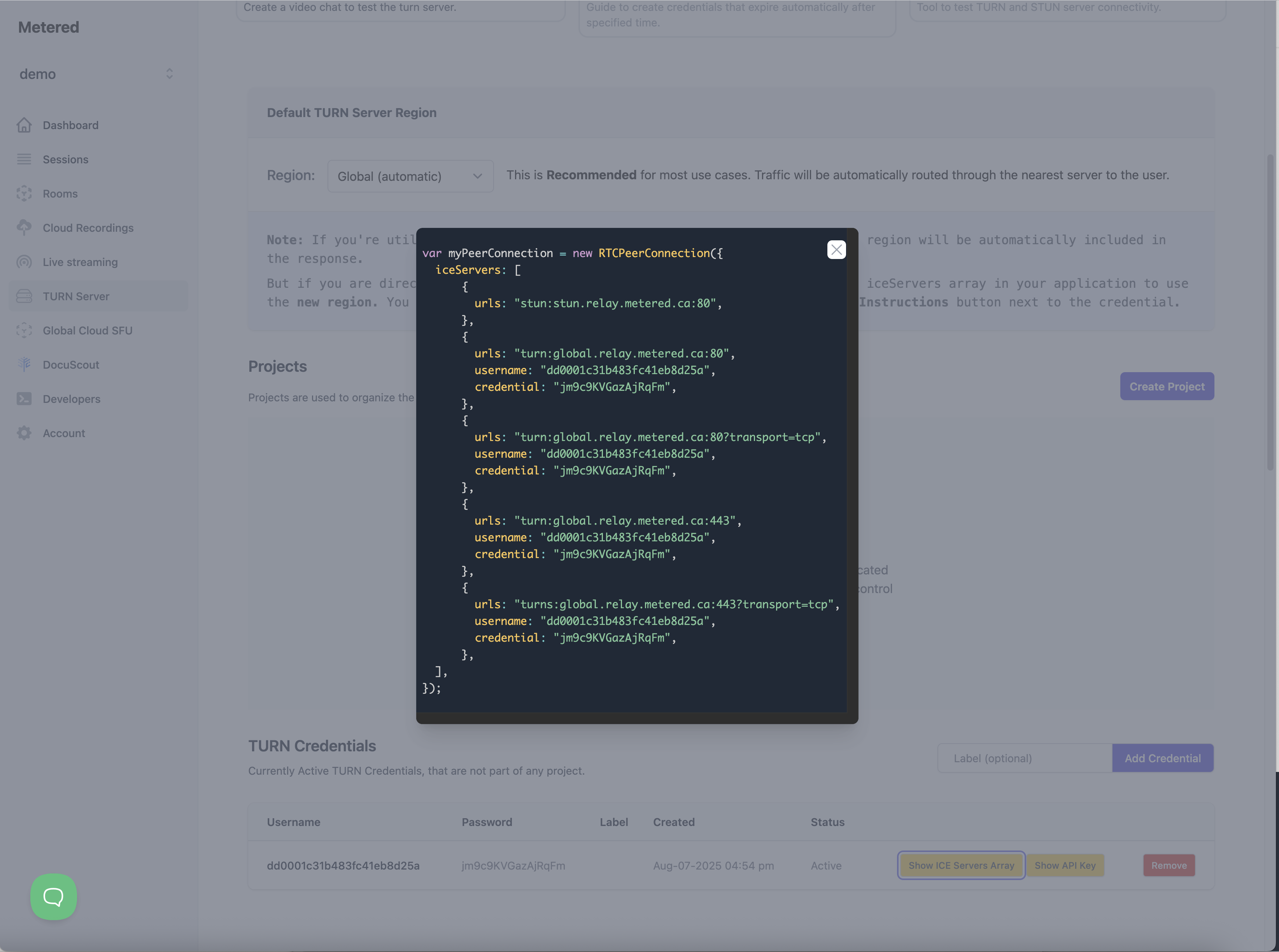

To use the credential you can click on the "Show ICE Servers Array" button, and it will show the ICE Servers Array that you can use in your application.

That's it!

Creating Credentials using the REST API

To create the credential using the REST API, we will call the Create TURN Credential API

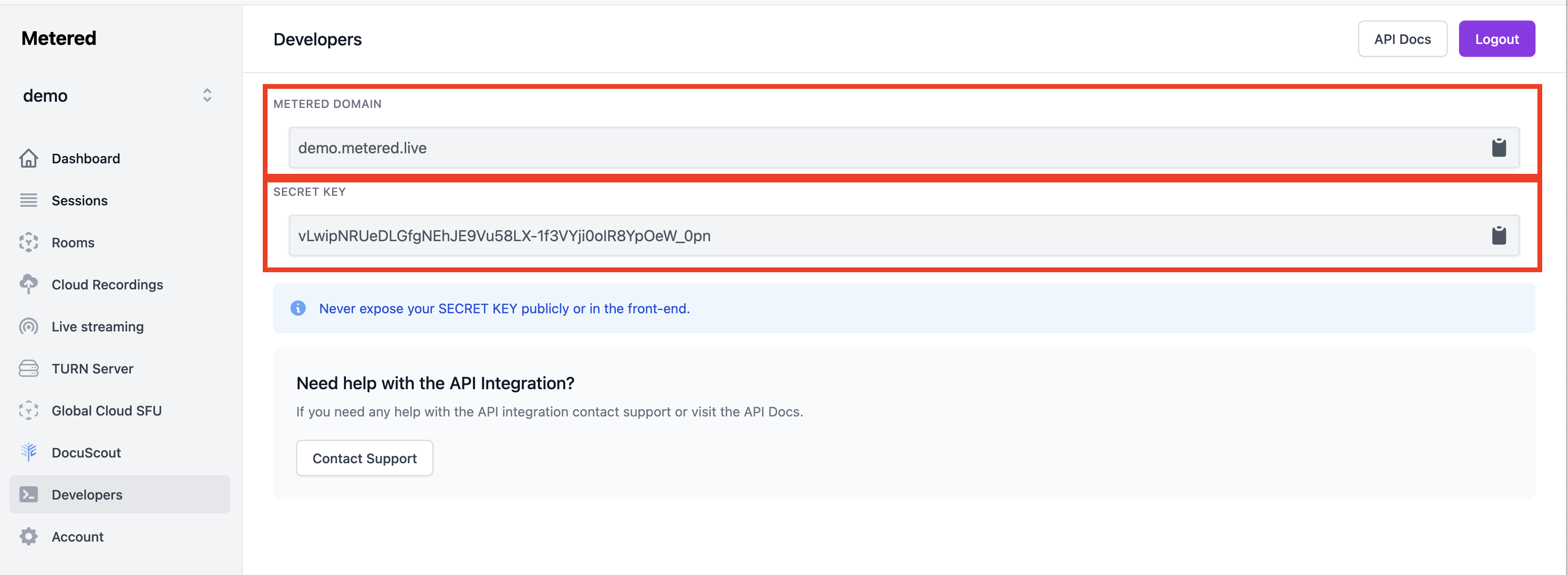

To use this API go to the developers page, from here copy the Metered Domain and the Metered Secret Key

curl -X POST "https://<appname>.metered.live/api/v1/turn/credential?secretKey=<YOUR_SECRET_KEY>" \
    -H "Content-Type: application/json" \
    -d '{
        "label": "exampleLabel"
    }'

Replace <appname> with your appname, and in our case it is demo and the secretKey with your secretKey example:

curl -X POST "https://demo.metered.live/api/v1/turn/credential?secretKey=vLwipNRUeDLGfgNEhJE9Vu58LX-1f3VYji0oIR8YpOeW_0pn" \
    -H "Content-Type: application/json" \
    -d '{
        "label": "created-via-api"
    }'

You will get the following response:

{
    "username": "a5c3184b4a4836923cf6bd96",
    "password": "mcOUQqUdXie7PTd1",
    "apiKey": "a57a9a52a4a56f5daffb86a0b6179e00e624"
}

Now to use this credential you can use the following ice servers array, and replace the username with the username you have obtained in the response and the credential with the password you have received in the response

var myPeerConnection = new RTCPeerConnection({
  iceServers: [
      {
        urls: "stun:stun.relay.metered.ca:80",
      },
      {
        urls: "turn:global.relay.metered.ca:80",
        username: "",
        credential: "",
      },
      {
        urls: "turn:global.relay.metered.ca:80?transport=tcp",
        username: "",
        credential: "",
      },
      {
        urls: "turn:global.relay.metered.ca:443",
        username: "",
        credential: "",
      },
      {
        urls: "turns:global.relay.metered.ca:443?transport=tcp",
        username: "",
        credential: "",
      },
  ],
});

Example:

var myPeerConnection = new RTCPeerConnection({
    iceServers: [
            {
                urls: "stun:stun.relay.metered.ca:80",
            },
            {
                urls: "turn:global.relay.metered.ca:80",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
            {
                urls: "turn:global.relay.metered.ca:80?transport=tcp",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
            {
                urls: "turn:global.relay.metered.ca:443",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
            {
                urls: "turns:global.relay.metered.ca:443?transport=tcp",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
    ],
});

OR you can call the Get Credential API and pass the API Key you got from the response and it will return you the ICE Servers array.

It will also comply with what you have selected in the dashboard, so in the dashboard if you have selected "Global" then it will return the Global ICE Servers array, and if you have specified a region, it will return the ICE Servers array containing the domain for that specific region.

You can also obtain the ICE Servers array for any region by specifying the region as a query parameter, you can read more about it here: Pin TURN Traffic To Specific Region

This API will return you the ICE Servers Array, and you can call it from the front-end of your application unlike the Secret Key which should not be exposed on the front-end.

The API Key is unique for each TURN Credential and when the TURN Credential is expired or removed the API Key is also removed.
