Creating TURN Credentials

There are two ways to create TURN Credentials:

  1. You can create them using the dashboard
  2. You can create the TURN Credential using the REST API

With the REST API you can also create TURN Credentials that expire automatically after a fixed duration.

Allow up to 2 minutes for a new credential to propagate

See How to Rotate TURN Credentials for the recommended implementation.

However it is created, a new TURN credential is not usable the moment it appears in the dashboard or in the API response. The credential has to propagate across Metered's global TURN network, which can take up to 2 minutes.

If a client tries to allocate a relay with a brand new credential before propagation has finished, the TURN server can reject the authenticated allocation and no relay candidate is gathered, even though the credential itself is valid. Retrying a short while later succeeds.

Create credentials ahead of time from your back-end instead of at call-setup time, and reuse them across calls.

Creating Credentials from the Dashboard​

Two dashboards

Screenshots below show the new dashboard. If you use the classic dashboard, pick the Classic dashboard tab — your choice is remembered on every page. You can switch at any time: Old dashboard in the header takes you back to the classic dashboard, and dashboard.metered.ca/v2 opens the new one. What changed in the new dashboard →

Log into the Metered Dashboard and open TURN Server → Credentials in the left navigation.

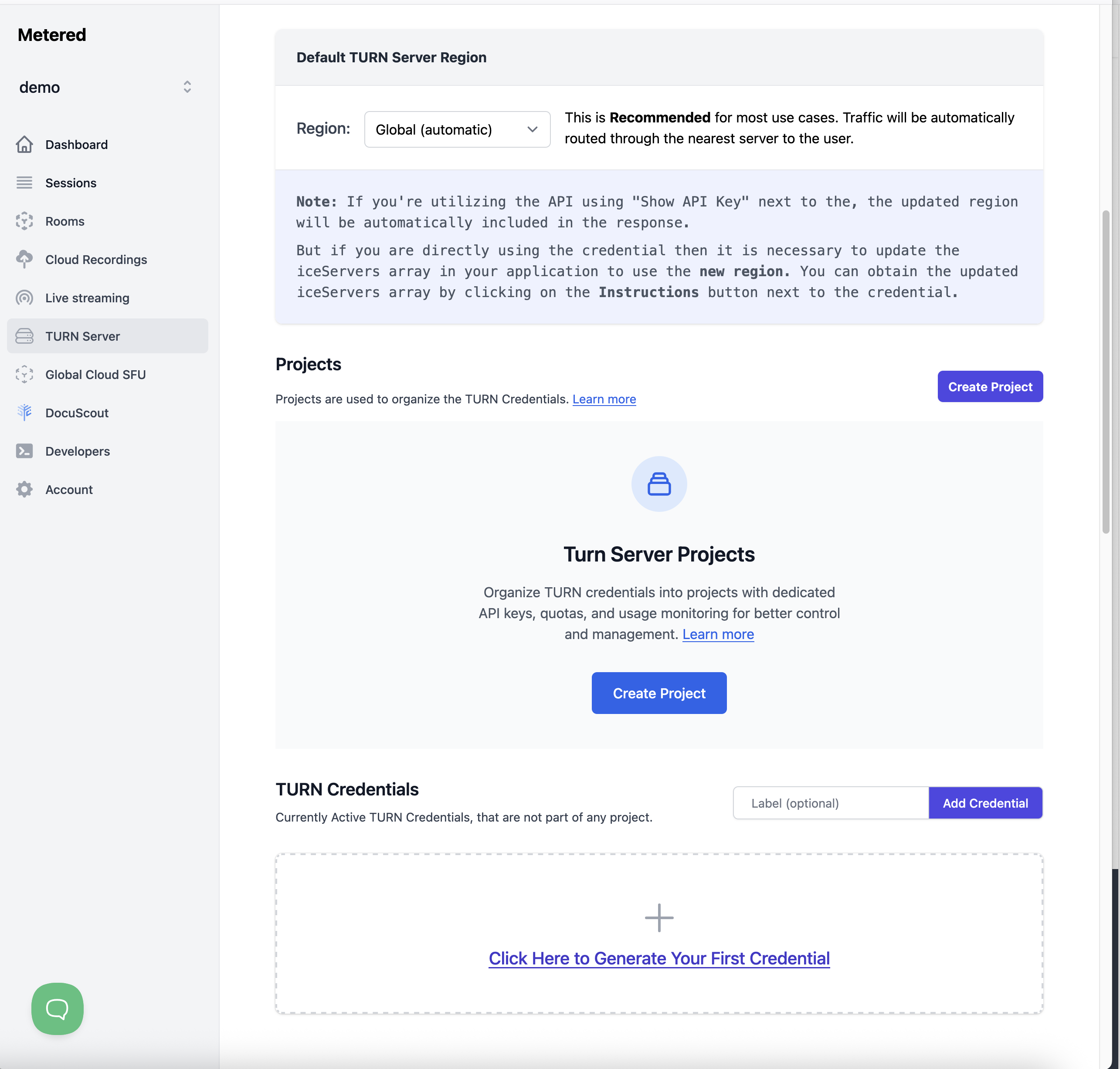

TURN Server Credentials page

Click Create Credential. Everything in the dialog is optional: a label to map the credential back to a user or customer, a region to pin this credential's relay traffic (by default it follows the workspace region), and a project to group it under a shared quota.

Create Credential dialog

Click Create credential. The new credential appears at the top of the table. Passwords are hidden until you click the eye icon.

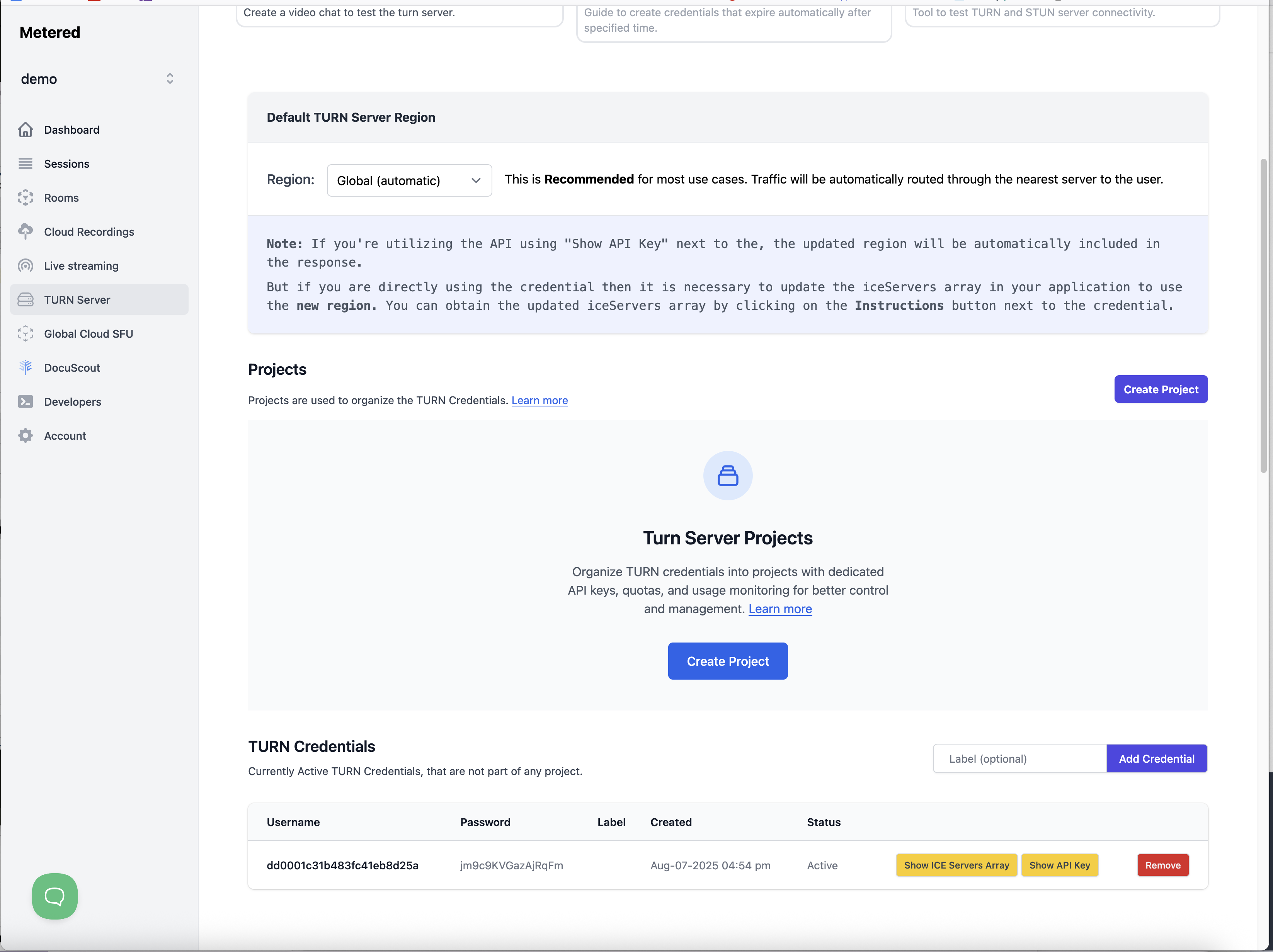

Credential created

To use the credential, click Get credential on its row and then Show ICE Servers Array. The ICE button on the row copies the same array straight to your clipboard.

Get credential panel

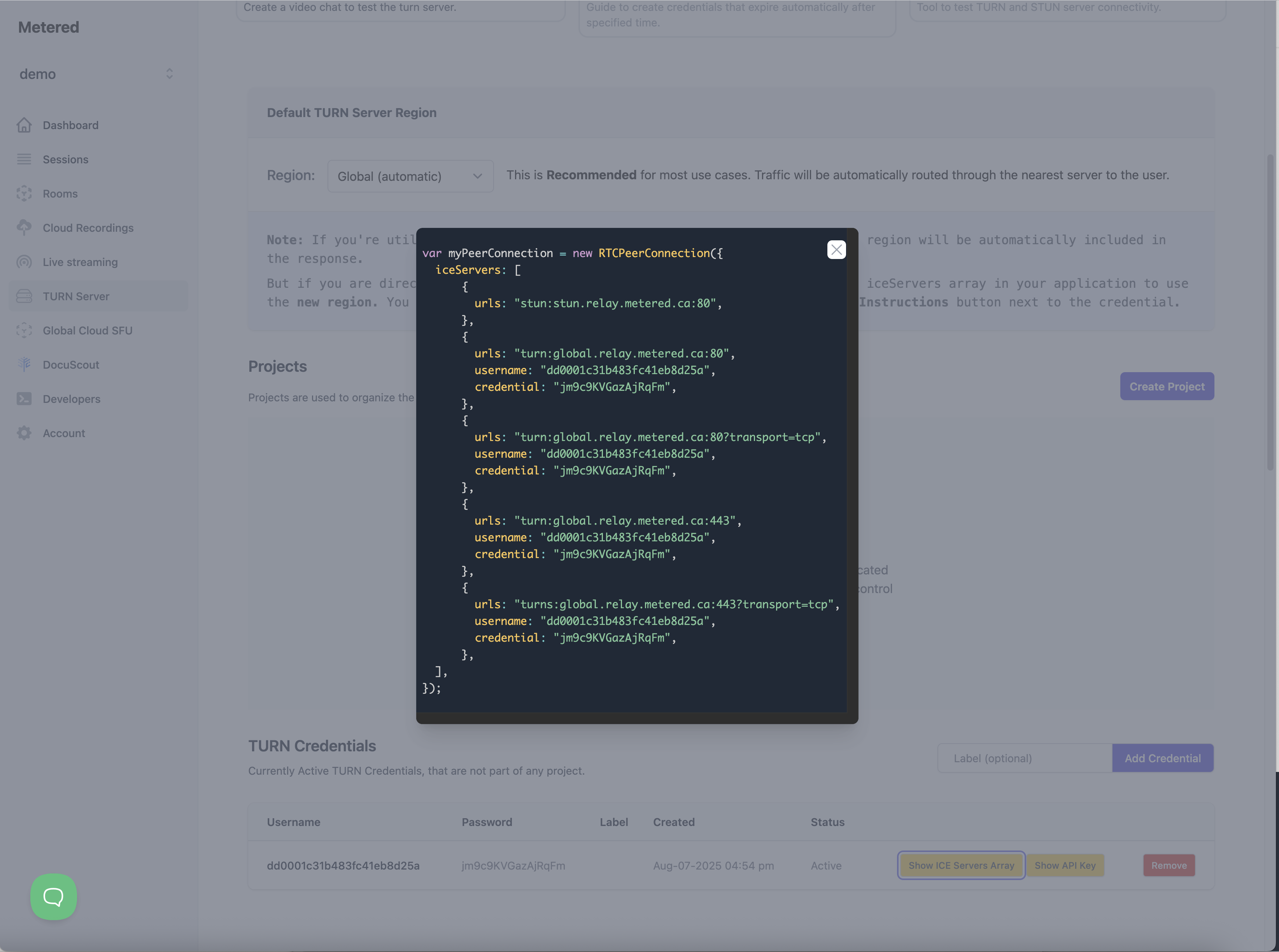

ICE Servers Array

That's it!

Creating Credentials using the REST API​

To create the credential using the REST API, we will call the Create TURN Credential API

Open Developers in the left navigation. Copy the Metered domain; click Reveal next to Secret key to reveal it, then the copy icon. Never expose the secret key in front-end code.

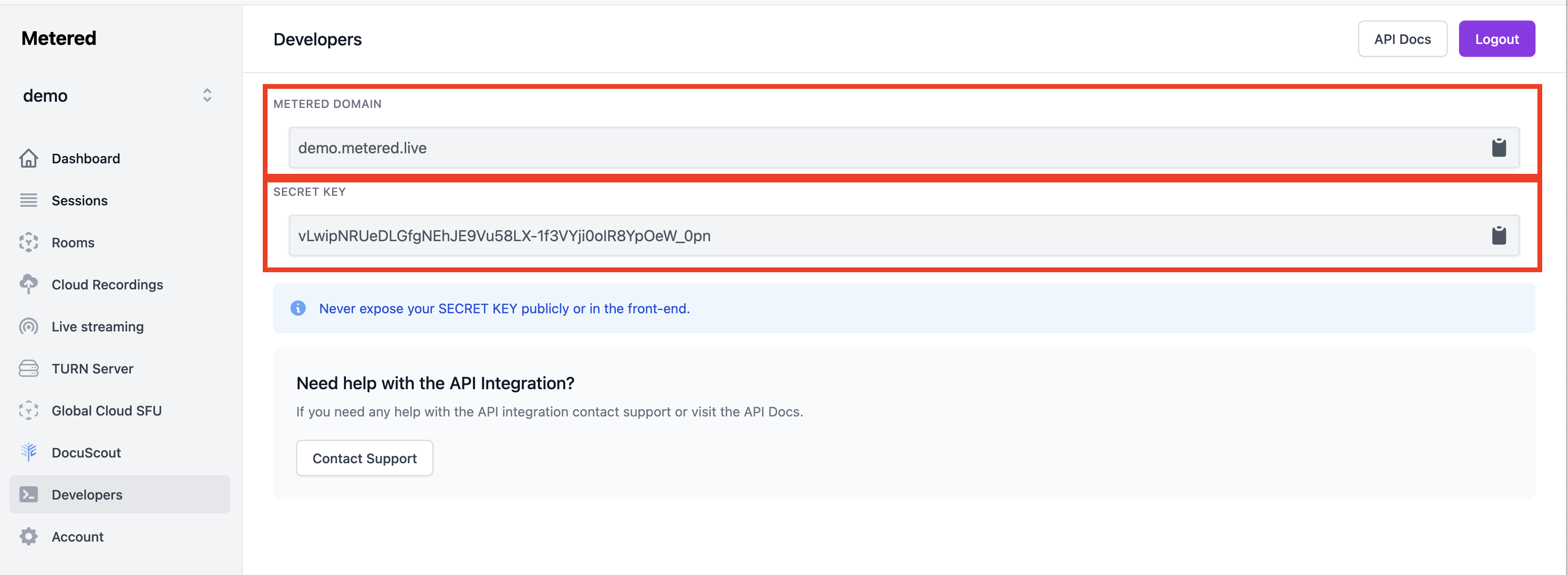

Developers page

curl -X POST "https://<appname>.metered.live/api/v1/turn/credential?secretKey=<YOUR_SECRET_KEY>" \
    -H "Content-Type: application/json" \
    -d '{
        "label": "exampleLabel"
    }'

Replace <appname> with your appname, and in our case it is demo and the secretKey with your secretKey example:

curl -X POST "https://demo.metered.live/api/v1/turn/credential?secretKey=vLwipNRUeDLGfgNEhJE9Vu58LX-1f3VYji0oIR8YpOeW_0pn" \
    -H "Content-Type: application/json" \
    -d '{
        "label": "created-via-api"
    }'

You will get the following response:

{
    "username": "a5c3184b4a4836923cf6bd96",
    "password": "mcOUQqUdXie7PTd1",
    "apiKey": "a57a9a52a4a56f5daffb86a0b6179e00e624"
}

Now to use this credential you can use the following ice servers array, and replace the username with the username you have obtained in the response and the credential with the password you have received in the response

var myPeerConnection = new RTCPeerConnection({
  iceServers: [
      {
        urls: "stun:stun.relay.metered.ca:80",
      },
      {
        urls: "turn:global.relay.metered.ca:80",
        username: "",
        credential: "",
      },
      {
        urls: "turn:global.relay.metered.ca:80?transport=tcp",
        username: "",
        credential: "",
      },
      {
        urls: "turn:global.relay.metered.ca:443",
        username: "",
        credential: "",
      },
      {
        urls: "turns:global.relay.metered.ca:443?transport=tcp",
        username: "",
        credential: "",
      },
  ],
});

Example:

var myPeerConnection = new RTCPeerConnection({
    iceServers: [
            {
                urls: "stun:stun.relay.metered.ca:80",
            },
            {
                urls: "turn:global.relay.metered.ca:80",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
            {
                urls: "turn:global.relay.metered.ca:80?transport=tcp",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
            {
                urls: "turn:global.relay.metered.ca:443",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
            {
                urls: "turns:global.relay.metered.ca:443?transport=tcp",
                username: "a5c3184b4a4836923cf6bd96",
                credential: "mcOUQqUdXie7PTd1",
            },
    ],
});

OR you can call the Get Credential API and pass the API Key you got from the response and it will return you the ICE Servers array.

It will also comply with what you have selected in the dashboard, so in the dashboard if you have selected Global (automatic) then it will return the Global ICE Servers array, and if you have specified a region (for the workspace or, for credentials created on the new dashboard, the credential's own Region), it will return the ICE Servers array containing the domain for that specific region.

You can also obtain the ICE Servers array for any region by specifying the region as a query parameter, you can read more about it here: Pin TURN Traffic To Specific Region

This API will return you the ICE Servers Array, and you can call it from the front-end of your application unlike the Secret Key which should not be exposed on the front-end.

The API Key is unique for each TURN Credential and when the TURN Credential is expired or removed the API Key is also removed.
